Well I guess four weeks later is good enough.easterngray wrote:I would like to resurrect this thread... I never got around to making the finger joint jig.. I plan to get to it this week, now that work obligations have slowed down. Anyone else care to join in? Alec
So where do I start?[ATTACH]18132[/ATTACH]
I made these all from the inertnet PTWFE online. I do not own a hard copy as of yet.
- Attachments
-
- DSC03014_1.JPG (209.57 KiB) Viewed 2871 times
1986 Mark V 500, SS Bandsaw, SS Belt Sander, Shaper Package, SS Molder, SS Oscillating Drum Sander, Excalibur EX-II scrollsaw, Central Machine 6 1/8" Jointer, Rigid 13" planer, Various routers and table.
"Remeber, you're unique. Just like everyone else."
"Remeber, you're unique. Just like everyone else."

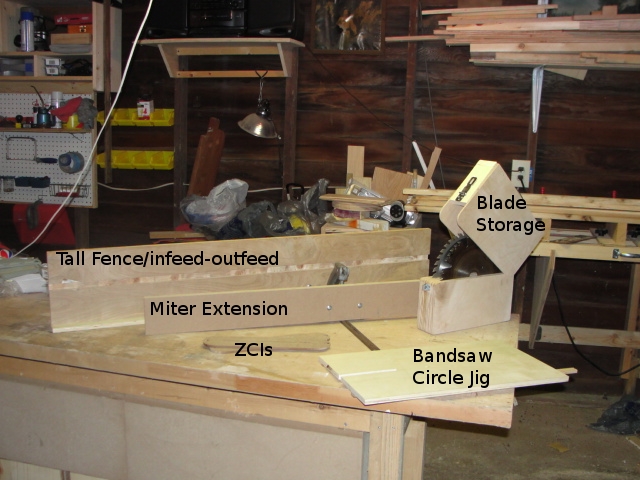

The miter gage extension and zero clearance inserts should be self explanatory. Here is what the tall fence can be used for, manly panels and long boards. A roller outfeed or flip top helps with the jig too. The dado is used to hold feather boards.
[ATTACH]18133[/ATTACH]
Here is the plan. Works well.
[ATTACH]18133[/ATTACH]
Here is the plan. Works well.
- Attachments
-
- DSC02870_resize.JPG (392.23 KiB) Viewed 2860 times
1986 Mark V 500, SS Bandsaw, SS Belt Sander, Shaper Package, SS Molder, SS Oscillating Drum Sander, Excalibur EX-II scrollsaw, Central Machine 6 1/8" Jointer, Rigid 13" planer, Various routers and table.
"Remeber, you're unique. Just like everyone else."
"Remeber, you're unique. Just like everyone else."

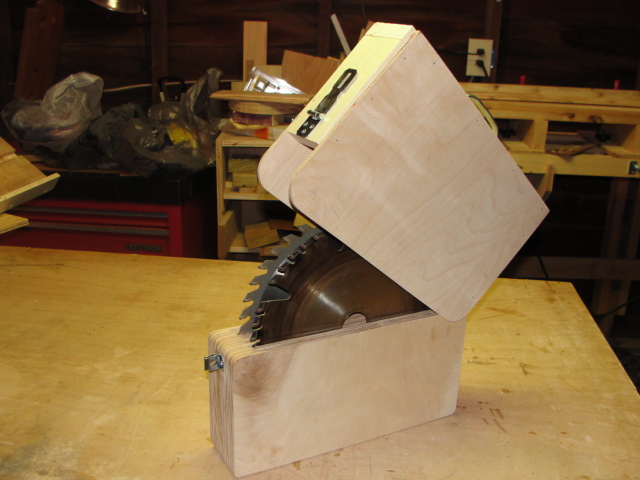

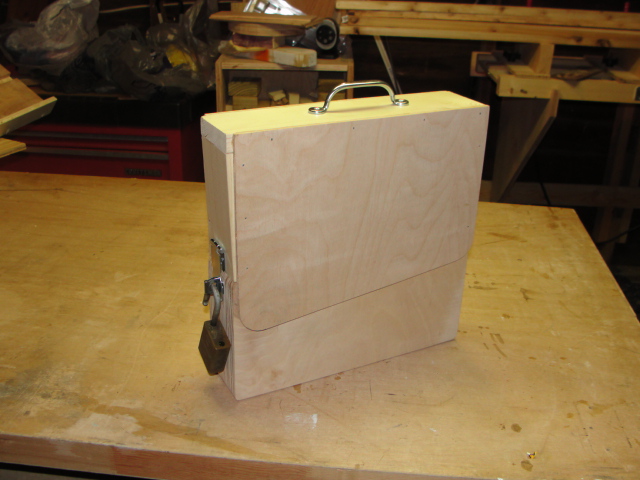

This one was fun to make. Holds six blades in a nice package that can be toted around. Shopsmith arbors will need to be taken off but small price to play.
[ATTACH]18134[/ATTACH]
[ATTACH]18135[/ATTACH]
And once again, here is the plan.
[ATTACH]18134[/ATTACH]
[ATTACH]18135[/ATTACH]
And once again, here is the plan.
- Attachments
-
- DSC03015.JPG (133.21 KiB) Viewed 2863 times
-
- DSC03016.JPG (143.57 KiB) Viewed 2861 times
1986 Mark V 500, SS Bandsaw, SS Belt Sander, Shaper Package, SS Molder, SS Oscillating Drum Sander, Excalibur EX-II scrollsaw, Central Machine 6 1/8" Jointer, Rigid 13" planer, Various routers and table.
"Remeber, you're unique. Just like everyone else."
"Remeber, you're unique. Just like everyone else."

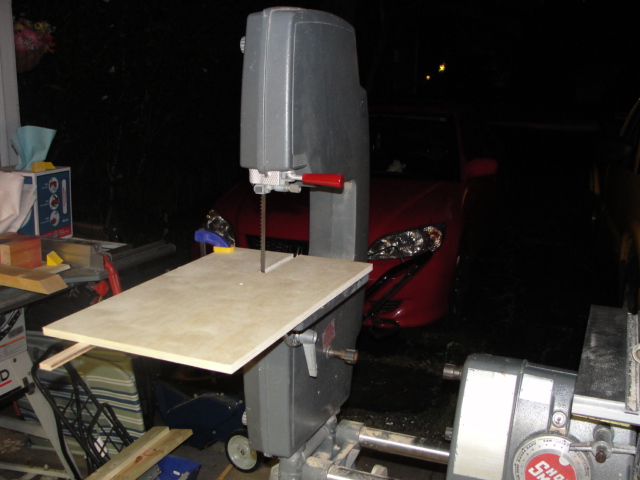

And finally the bandsaw circle cutting jig for cast iron bandsaw tables. I haven't used it for anything in particlar. Only to test it. Works well. I just screw down the stock at the needed radis.
[ATTACH]18136[/ATTACH]
Here is the link to the directions and jig in action on PTFWE online. And da plan.
Not sure what I'll make next. That grinding wheel cover looks cool but that isn't on the online version. I was also thinking about the large fence for the belt sander, found here. I guess time will tell.
