Question for those of you who use are doing lathe work and using the speed reducer and the upgraded heavy duty tool rest that clamps to the top of the slider. When you need to use a live center in the tail stock to help support the wood what do you do. I can't seem to get closed enough to the tail stock. If I don't use the speed reducer I can extend the quill but that doesn't work with the speed reducer.
You can extend the quill with the speed reducer attached- extend the quill first, then tighten the speed reducer to the way tubes.
I use a #2 Morse taper extension from Packard Woodworks in the tailstock.
http://www.packardwoodworks.com/Merchan ... gory_Code=
Gary
I use a #2 Morse taper extension from Packard Woodworks in the tailstock.
http://www.packardwoodworks.com/Merchan ... gory_Code=
Gary
I don't think I need to extend the quill it is the speed reducer that causes the problem. Does the Morse taper extension set up to much vibration or stress the tail stock.
greitz wrote:You can extend the quill with the speed reducer attached- extend the quill first, then tighten the speed reducer to the way tubes.
I use a #2 Morse taper extension from Packard Woodworks in the tailstock.
http://www.packardwoodworks.com/Merchan ... gory_Code=
Gary
- JPG
- Platinum Member
- Posts: 34697
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
The speed reducer will move with the quill(that is how large holes are bored).rwilabee wrote:I don't think I need to extend the quill it is the speed reducer that causes the problem. Does the Morse taper extension set up to much vibration or stress the tail stock.
The live tailstock extension is a lathe duplicator part.
Does the hd tool rest interfere with the sr?
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
JPG40504 wrote:The speed reducer will move with the quill(that is how large holes are bored).
The live tailstock extension is a lathe duplicator part.
Does the hd tool rest interfere with the sr?
I've got both the Universal Tool Rest and the Speed Reducer but have not used them both at the same time on a work piece that is short enough to bring this issue to the fore.

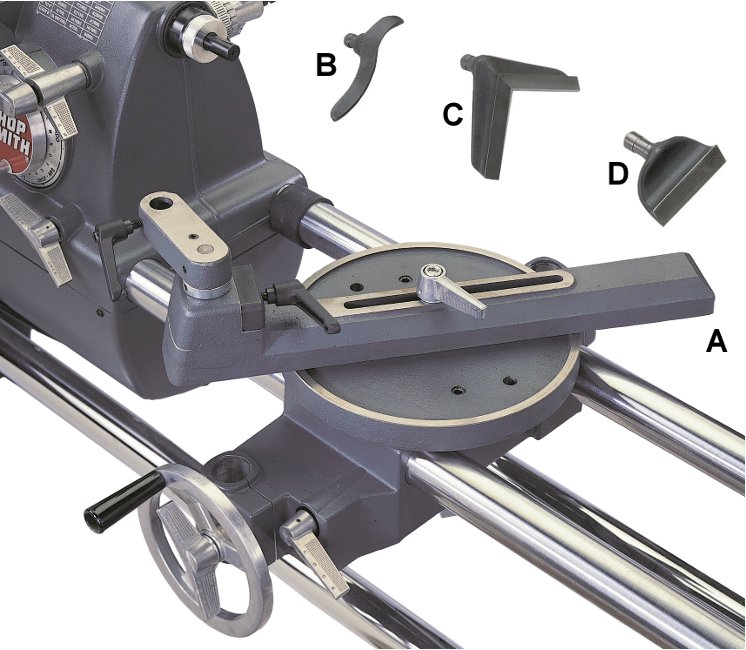

But looking at the images on the Shopsmith site, you can see the UTR has a large disc that overhangs the carriage on both sides and which at some point will interfere with the SR's base as you extend the quill. And if that doesn't get you, it looks like the UTR's banjo may be high enough to catch the SR's casting although I suspect the base interference issue would get you first.
[ATTACH]26024[/ATTACH]
[ATTACH]26025[/ATTACH]
- Attachments
-
- speed_reducer_in_use1_l.jpg (86.23 KiB) Viewed 6093 times
-
- all_inclusive_tool_rest_pkg_l.jpg (97.38 KiB) Viewed 6092 times
- fredsheldon
- Platinum Member
- Posts: 1175
- Joined: Tue Jan 17, 2012 1:31 pm
- Location: The Woodlands, Texas
But of course you could solve the issue with the purchase of a Pow... Oh never mind.
Fred Sheldon
The Woodlands, Tx
'52 10ER # 60869 (restored in 2012, used as a dedicated drill press), '52 10ER # 88712 (restored 01/2013), 52 10ER # 71368 (in process of restoring), '83 500 Shorty with OPR installed, '83 520 PowerPro with Lift Assist, 6" Joiner, 6" Belt Sander, 18" Jig Saw, 11" Band Saw, 12" ProPlaner, SS Crosscut Table. SS Dust Collector, Hitachi 1/2" router, Work Sharp 3000 with all attachement, Nova G3 Chuck, Universal Tool Rest, Appalachia Tool Works Sled.
The Woodlands, Tx
'52 10ER # 60869 (restored in 2012, used as a dedicated drill press), '52 10ER # 88712 (restored 01/2013), 52 10ER # 71368 (in process of restoring), '83 500 Shorty with OPR installed, '83 520 PowerPro with Lift Assist, 6" Joiner, 6" Belt Sander, 18" Jig Saw, 11" Band Saw, 12" ProPlaner, SS Crosscut Table. SS Dust Collector, Hitachi 1/2" router, Work Sharp 3000 with all attachement, Nova G3 Chuck, Universal Tool Rest, Appalachia Tool Works Sled.
A new POW still will not solve the problem. Any time you want to have the tail stock to help support the project either the SR or the in the case of the POW the housing will hit the Heavy Duty Tool Rest plate. You can use an extension in the tail stock and then the live center but it can set up vibration being extended so far. I don't think there is a good answer when using the Heavy Duty Tool Rest.
fredsheldon wrote:But of course you could solve the issue with the purchase of a Pow... Oh never mind.
