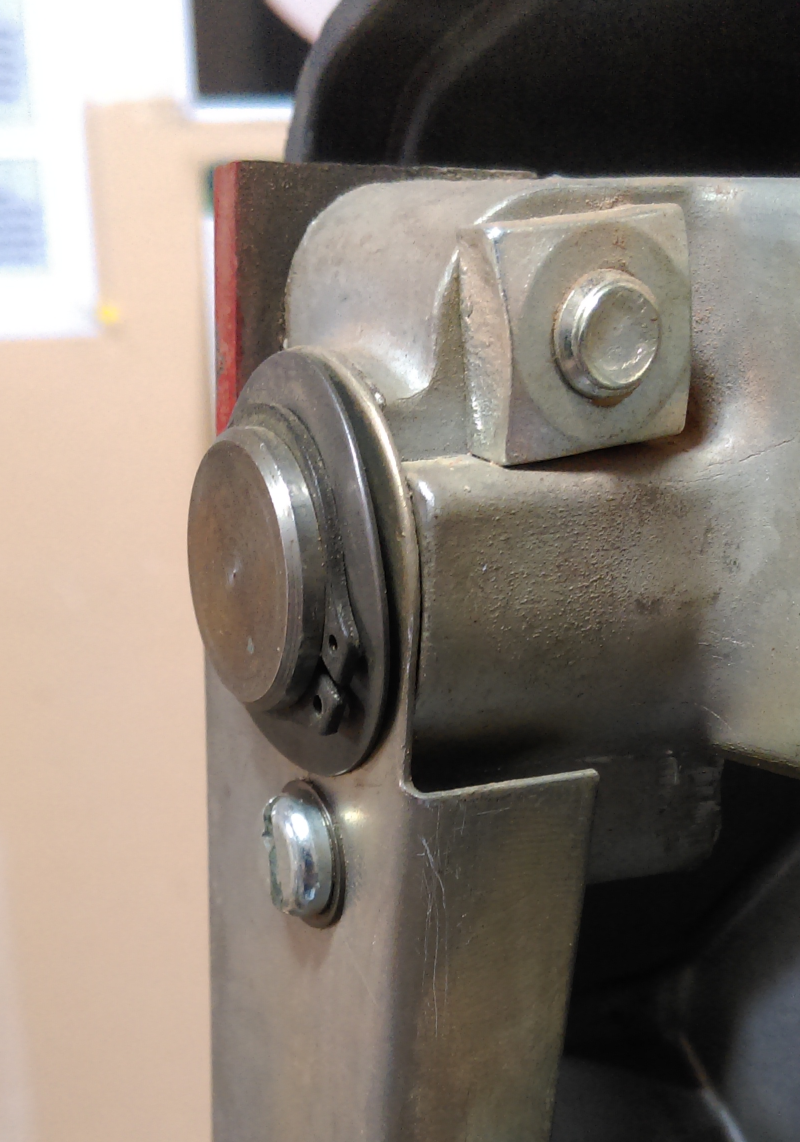

Can you guys tell me if this retaining ring is damaged or if it's warped to increase tension of the assembly on the shaft? I can't tell from the manual.
- Retaining Ring.png (1012.34 KiB) Viewed 736 times
Bandsaw Retaining Ring - Damaged?
Moderator: admin
-
gatheringsplinters
- Gold Member
- Posts: 72
- Joined: Thu Jan 14, 2016 8:16 am
Bandsaw Retaining Ring - Damaged?
Howdy,
Can you guys tell me if this retaining ring is damaged or if it's warped to increase tension of the assembly on the shaft? I can't tell from the manual.
Thanks
Can you guys tell me if this retaining ring is damaged or if it's warped to increase tension of the assembly on the shaft? I can't tell from the manual.
Thanks
Mark V 500 (1984) - Shopsmith Bandsaw (Older Model with Cast Iron Table) - Shopsmith Jointer
Woodworker Level: Beginner
Boulder Colorado
Instagram: gathering_splinters
Youtube: gathering splinters
Woodworker Level: Beginner
Boulder Colorado
Instagram: gathering_splinters
Youtube: gathering splinters
Re: Bandsaw Retaining Ring - Damaged?
The retaining ring ( snap ring )does not appear to be damaged. There is a "wavy" washer there to keep some tension on the shaft
I do not look at the blade tension assembly much so I am going by memory.
Bill V
I do not look at the blade tension assembly much so I am going by memory.
Bill V
Re: Bandsaw Retaining Ring - Damaged?
Things look fine to me. That is listed as a "thrust washer" in the parts list.
You're find to make sawdust at least as far as that goes.
Ed
You're find to make sawdust at least as far as that goes.
Ed
