Shaper Insert Offset Hole Normal?

algale · Post by **algale** » Fri Dec 22, 2017 8:41 pm

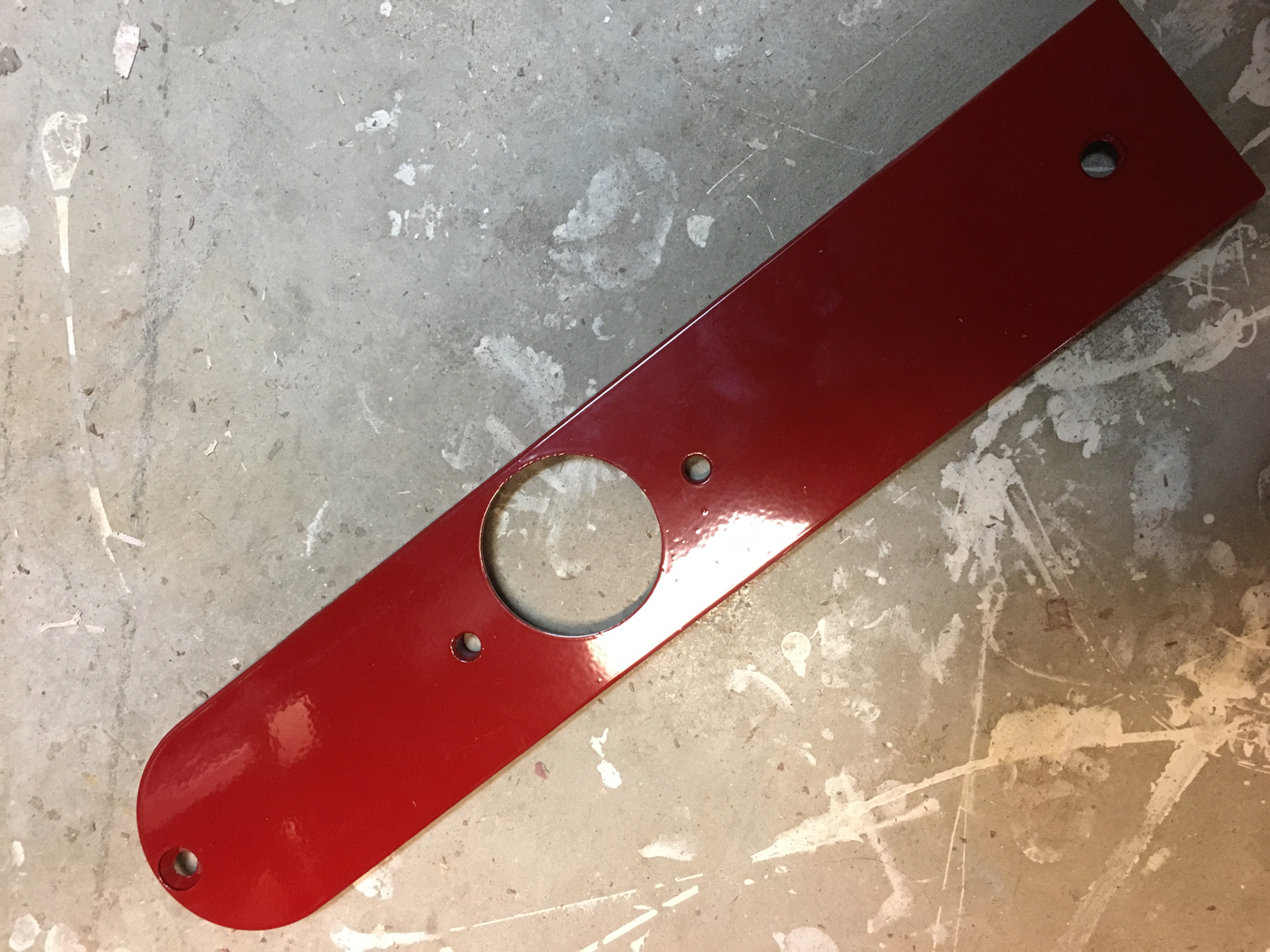

I recently purchased the Shaper (sander) fence and it came with the shaper insert. I went to use that today and discovered the hole in the shaper insert is off center as shown in the photo.

: IMG_86C729C5B574-1.jpeg (1.51 MiB) Viewed 3643 times

Is an off center hole "normal" in the shaper insert?? (My drum sander insert, on the other hand, is centered).

reible · Post by **reible** » Fri Dec 22, 2017 10:55 pm

Yep that is what they look like.

Ed

Beave2012 · Post by **Beave2012** » Fri Dec 22, 2017 11:10 pm

My guess is because you would always want the holes for the fence to be even with the outside shaft of the shaper, and let the cutting edges only protrude. While with the drum sander it wouldn't matter.

However it's only a guess, maybe someone smarter than I could give the real reason.

JPG · Post by **JPG** » Sat Dec 23, 2017 10:44 am

Beave2012 wrote:My guess is because you would always want the holes for the fence to be even with the outside shaft of the shaper, and let the cutting edges only protrude. While with the drum sander it wouldn't matter.

However it's only a guess, maybe someone smarter than I could give the real reason.

???

Holes be fer pilot pins.
