Belt tension
Moderator: admin
-
Fireballxl5
- Silver Member
- Posts: 15
- Joined: Wed Sep 02, 2020 7:07 pm
- Location: Thousand Oaks, Calif
Belt tension
Have new belt and end of pulleys heat up some. Is this normal for a new belt or should I adjust the tension? This is a 10-ER shopsmith.
-
chapmanruss
- Platinum Member
- Posts: 4534
- Joined: Tue Aug 26, 2014 8:16 pm
- Location: near Portland, Oregon
Re: Belt tension

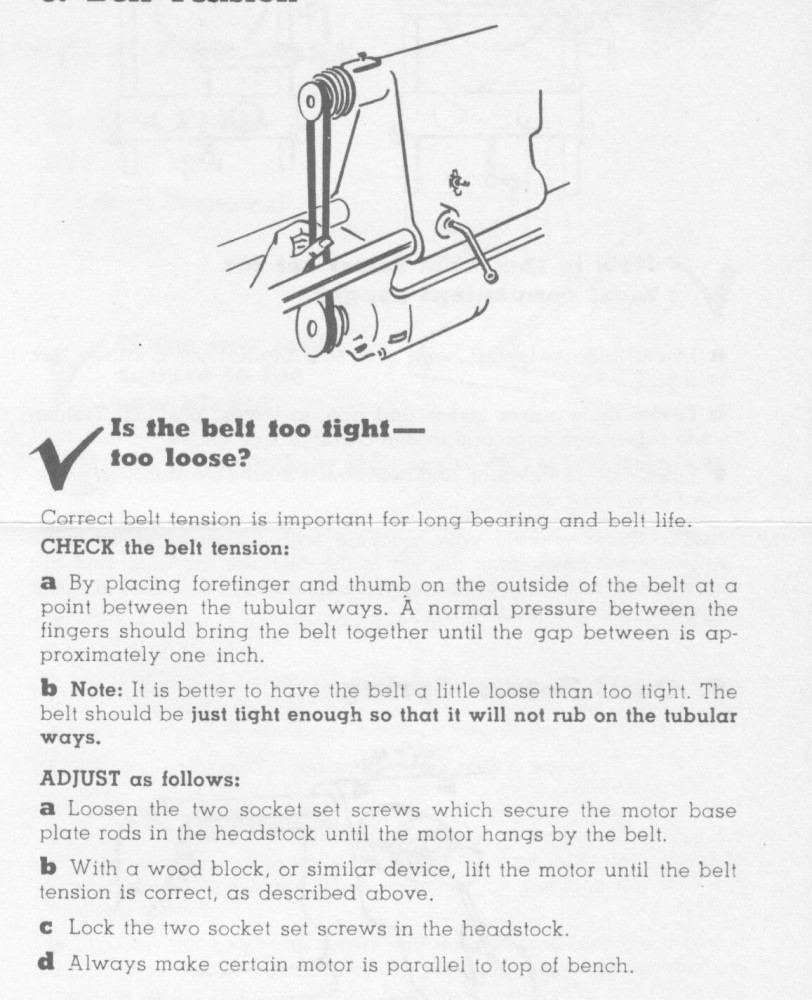

I have not had any of the Model 10's I have restored heat up the pulleys significantly when running with a new belt. All my Model 10 restorations get a new belt. They are run for a while after reassembly and alignment. There are two things to check. First, make sure the pulleys aligned. The second is the tension. Below is a section of page 3 of SHOPSMITH Adjustments for Model 10's with those instructions.
- 10E-ER Adjustments page 3c.jpg (150.42 KiB) Viewed 1258 times
Russ
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's, 2 Power Stations & Crafter's Station
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored.
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's, 2 Power Stations & Crafter's Station
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored.
-
Fireballxl5
- Silver Member
- Posts: 15
- Joined: Wed Sep 02, 2020 7:07 pm
- Location: Thousand Oaks, Calif
Re: Belt tension
Chapmanruss thank you so much for your help and instructions.
-
chapmanruss
- Platinum Member
- Posts: 4534
- Joined: Tue Aug 26, 2014 8:16 pm
- Location: near Portland, Oregon
Re: Belt tension
I was able to copy the 4 page SHOPSMITH Adjustments in PDF format and small enough to post here. It is in the attachment below.
SHOPSMITH Adjustments July 52 200 DPI.PDF- (1.48 MiB) Downloaded 348 times
Russ
