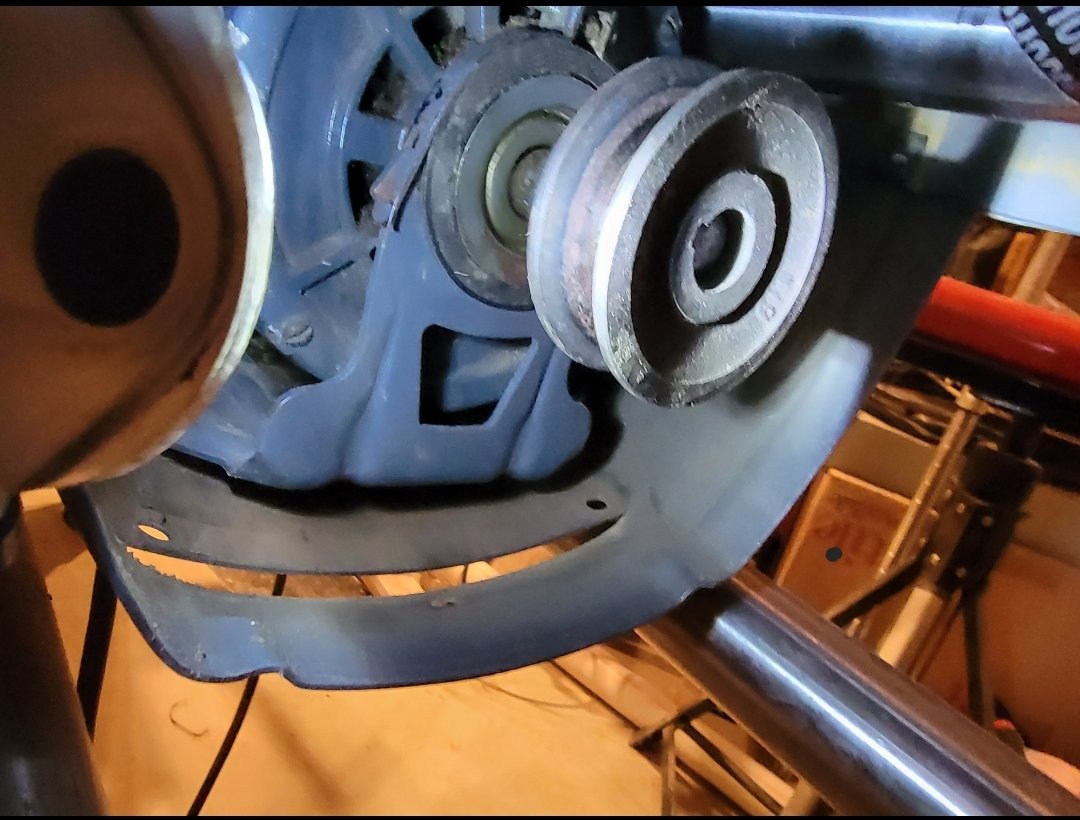

Newbie here, just acquired a shopsmith Mark V circa 1980s, with original manual. Needed a new switch, no problem. Also figured I would replace the belts. After breaking down the headstock, I found this on the motor (picture, no lower motor unit sheaves) in my research, I can't find any configuration like this. Figured previous owner "rigged it". Any confirmation of my thoughts would be appreciated. Look forward to getting this bad boy working.
Thanks!
You are correct, that is not an original Shopsmith motor, it was "rigged"
Ron Dyck
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
With a fixed sheave on the motor, it'll only run at one speed. If you turn the speed control up, the belt will slip, and if you try to turn it slower, you could damage the speed control. You'll need the motor and sheave assembly - a pretty expensive part (almost $500) if you buy it new. They're available used if you shop around.
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
and a member here, peterm, converted one of his to run on an industrial sewing machine motor. viewtopic.php?t=12225
Ron Dyck
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
You have already been given options on what you can do. A new motor, a used motor or other substitute. Buying a used motor can be more cost effective than buying a new one and are easily found at online auctions. A used motor is a sold "as is" item. Ron already suggested the Facebook forum and there are other sources. Many used motors have come up for sale that are in very good condition and include the Pulley Sheaves too just like the new motors coming from the factory. Many are from Mark V's upgraded to the Power Pro DVR motor. That is an additional option for you as a motor replacement to go with the Power Pro DVR Motor. It is a more expensive option though and something you may not want to do yet.
Another concern I have is what was the motor belt going to. Has there been modifications to the Idler Shaft Assembly too?
Russ
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's, 2 Power Stations & Crafter's Station
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored.
Good idea to send us more photos. At this point you should definitely drop the motor pan and motor and take some pictures from underneath to see what's there. Even with the motor still in you can take a picture to see what's in the area above the pulley shown above. We don't know what kind of upper pulley is there.
If not for the special configuration of a Shopsmith motor there would be even more of these decades old machines still alive and operating.
Damn! I figured as much. I deeply appreciate all the feed back. I don't fault the seller as he said it was his dads,, and wasn't sure of the condition. Only paid$100 and has saw, sander, lathe, and bandsaw attachments. I've dropped the motor, and had my hands up and in the headstock. The floating sheaves and upper assembly attached to the adjustment dial is fine....had to lube a little. Well, at lease I know where I stand and what has to be done. Again, I appreciate everybody's feedback and will research all options.
Brrpac wrote: Mon Feb 07, 2022 6:06 pm
Damn! I figured as much. I deeply appreciate all the feed back. I don't fault the seller as he said it was his dads,, and wasn't sure of the condition. Only paid$100 and has saw, sander, lathe, and bandsaw attachments. I've dropped the motor, and had my hands up and in the headstock. The floating sheaves and upper assembly attached to the adjustment dial is fine....had to lube a little. Well, at lease I know where I stand and what has to be done. Again, I appreciate everybody's feedback and will research all options.
BRRPAC
For $100 you are probably okay. A word of caution if you go with a used motor and sheaves, which is what I would do. Sellers are sometimes unclear about motor HP, for example will say a 3/4HP motor will work in all models or not list the HP. Not exactly false since it will fit and run, but machines built in the last 60 years or so use a 1-1/8 HP motor. That's probably what you want. Used in good condition these run about $150 - $250 plus shipping. They are frequently available on ebay, and there are several on there currently.
Unless it has problems, the Bandsaw is worth more than $100. Of course, you need something to power it.
