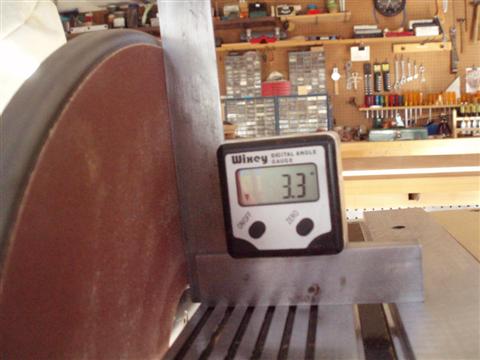

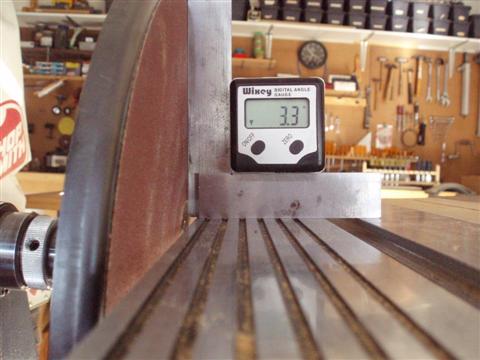

Not My Conical Disk
[ATTACH]8826[/ATTACH] [ATTACH]8827[/ATTACH]
Sand paper installed may effect the reading some but not that much.
Conical Disk - 4 Degrees???
Moderator: admin
-
dusty
- Platinum Member
- Posts: 21481
- Joined: Wed Nov 22, 2006 6:52 am
- Location: Tucson (Wildcat Country), Arizona
Conical Disk - 4 Degrees???
- Attachments
-
- P5100005 (Custom).JPG (33.67 KiB) Viewed 4442 times
-
- P5100007 (Custom).JPG (35.96 KiB) Viewed 4437 times
"Making Sawdust Safely"
Dusty
Sent from my Dell XPS using Firefox.
Dusty
Sent from my Dell XPS using Firefox.
Mine is not either, but does it matter as long as it is still conical? As you have shown, you set the table using a square. If necessary you can make adjustments to the table angle when using the jointer/planer knife sharpening jig. You might already do this if you want a more acute grind on the blades.dusty wrote:Not My Conical Disk
[ATTACH]8826[/ATTACH] [ATTACH]8827[/ATTACH]
Sand paper installed may effect the reading some but not that much.
Rob in San Diego
Email: SDSSmith51 AT gmail.com
Email: SDSSmith51 AT gmail.com
-
dusty
- Platinum Member
- Posts: 21481
- Joined: Wed Nov 22, 2006 6:52 am
- Location: Tucson (Wildcat Country), Arizona
Yes, that is certainly possible but there is no bubble. I have checked this without paper installed and get the same reading.dasgud wrote:is it possible there is a bubble or high spot right there to affect the reading?
From the very beginning there has been some confusion about whether the conical provides a 3°]it here[/URL] for yourself. About 5 minutes in.
"Making Sawdust Safely"
Dusty
Sent from my Dell XPS using Firefox.
Dusty
Sent from my Dell XPS using Firefox.
-
mickyd
- Platinum Member
- Posts: 2999
- Joined: Mon Feb 09, 2009 1:18 pm
- Location: San Diego, CA
- Contact:
My conical disc is also just shy of 3-1/2°. Wixey just resolved just how shy. Where this comes into play is obviosly setting the table angle. I use a square to set it perpendicular the actual angle. If however you setting the table based on an assumed angle of 4°, it would be wise to verify it.
Mike
Sunny San Diego
Sunny San Diego
BUT what does it measure more towards the edge of the disk?
SS 500(09/1980), DC3300, jointer, bandsaw, belt sander, Strip Sander, drum sanders,molder, dado, biscuit joiner, universal lathe tool rest, Oneway talon chuck, router bits & chucks and a De Walt 735 planer,a #5,#6, block planes. ALL in a 100 square foot shop.
.
.
Bob
.
.
Bob
-
JPG
- Platinum Member
- Posts: 35433
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
It ain't 4°! It is 3+°. The dimensions of Nick's thickness sander jig in a saw dust session ends up at about 3.2°.
Why SS insists on perpetually calling it 4° is a mystery(or they be like an ostrich).
Accept it! That IS the way it is! Use square to set table, and move on!
Why SS insists on perpetually calling it 4° is a mystery(or they be like an ostrich).
Accept it! That IS the way it is! Use square to set table, and move on!
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
I also corroborate the conical disc NOT being 4 degrees. I didn't try my Wixley, but my gauge under table is set exactly to 0, so I just counted back 4 lines... I'm assuming, of course, that this gauge is somewhat accurate.
Regardless, I was getting a setting at a little over 3 degrees. When I tried 4 it was very easy to see that the results were not square.
That is why I have come here!! LOL - to see if I was doing something wrong. It was my first time last night using this thing. And WOW - I love it... I just had difficulties setting it up.
I'll have to measure out further on the edge of the disc. I tried USING the outer edge and it was burning the wood - I even slowed down the disc more.
no Swirls - but there are slight "lines" like a belt sander might produce. Maybe there was some pitch or resin stuck in there - or an imperfection in the paper. It was NEW however.... Anyway - 5 swipes in my hand with some 220grit and they were gone.
Also on a side note - If I take off too much stock - a LOT of dust is created and it totally doesn't go in the vacuum shroud!
Regardless, I was getting a setting at a little over 3 degrees. When I tried 4 it was very easy to see that the results were not square.
That is why I have come here!! LOL - to see if I was doing something wrong. It was my first time last night using this thing. And WOW - I love it... I just had difficulties setting it up.
I'll have to measure out further on the edge of the disc. I tried USING the outer edge and it was burning the wood - I even slowed down the disc more.
no Swirls - but there are slight "lines" like a belt sander might produce. Maybe there was some pitch or resin stuck in there - or an imperfection in the paper. It was NEW however.... Anyway - 5 swipes in my hand with some 220grit and they were gone.
Also on a side note - If I take off too much stock - a LOT of dust is created and it totally doesn't go in the vacuum shroud!
