and all together for another look... what is the small table thing for??
some accessories I am not familiar with...
Moderator: admin
some accessories I am not familiar with...
pretty newb here, as I said I used this Shopsmith as a child a lot, but it mainly consisted of lathe work and band saw, which was what my grandpa used mostly, however upon receiving all this there are some stuff I have no idea about and was hoping you kind folks could put a name to them and their uses...
1.
2.
3.
and all together for another look... what is the small table thing for??
1.
2.
3.
and all together for another look... what is the small table thing for??
-
JPG
- Platinum Member
- Posts: 35600
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)

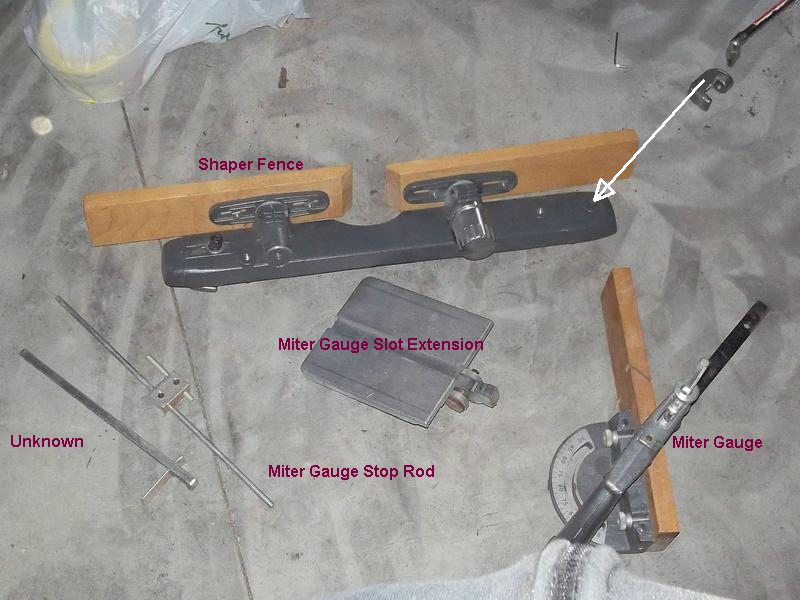

All but 1 identified.
[ATTACH]16254[/ATTACH]
White arrow indicates where the aluminum thingie goes - It is missing screw/washer(like the other end).
[ATTACH]16254[/ATTACH]
White arrow indicates where the aluminum thingie goes - It is missing screw/washer(like the other end).
- Attachments
-
- accessories.jpg (146.82 KiB) Viewed 2162 times
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
-
dusty
- Platinum Member
- Posts: 21530
- Joined: Wed Nov 22, 2006 6:52 am
- Location: Tucson (Wildcat Country), Arizona
The first picture is of a miter gauge that has been equipped with an auxillary fence (used for cross cuts).
The second picture is of a shaper fence. Mounts to main table using two bolts (through holes in main table).
The third picture is of a stop rod used with the miter gauge.
The second picture is of a shaper fence. Mounts to main table using two bolts (through holes in main table).
The third picture is of a stop rod used with the miter gauge.
"Making Sawdust Safely"
Dusty
Sent from my Dell XPS using Firefox.
Dusty
Sent from my Dell XPS using Firefox.
Pic #1: Miter gauge. Unlike most other miter gauges, the SS uses a pistol grip handle with a clamp that will hold the workpiece. This is safer, keeping your hands further from the blade and the workpiece secure. Yours also has a face extension to easier handle longer pieces.
Pic #2: This is the drum sander and shaper fence. It clamps to the table and gives you a fence when using a drum sander attachment or using the SS as a shaper.
Pic #3: I'm not sure what the flat bar is, but the round bar is a stop rod for use with the miter gauge. This is so you can make repeating cuts of exactly the same length.
This picture shows the miter gauge and stop rod being used.
Pic #4: In the center is the miter slot extension. It lengthens the miter slot giving you a little bit more room at the front of the table.
See this post: http://www.shopsmith.net/forums/showpos ... stcount=18
Pic #2: This is the drum sander and shaper fence. It clamps to the table and gives you a fence when using a drum sander attachment or using the SS as a shaper.
Pic #3: I'm not sure what the flat bar is, but the round bar is a stop rod for use with the miter gauge. This is so you can make repeating cuts of exactly the same length.
This picture shows the miter gauge and stop rod being used.
Pic #4: In the center is the miter slot extension. It lengthens the miter slot giving you a little bit more room at the front of the table.
See this post: http://www.shopsmith.net/forums/showpos ... stcount=18
Heath
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
The "unknown" item looks like a fence for a hand held skil saw.
SS 500(09/1980), DC3300, jointer, bandsaw, belt sander, Strip Sander, drum sanders,molder, dado, biscuit joiner, universal lathe tool rest, Oneway talon chuck, router bits & chucks and a De Walt 735 planer,a #5,#6, block planes. ALL in a 100 square foot shop.
.
.
Bob
.
.
Bob
-
JPG
- Platinum Member
- Posts: 35600
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
That's "Dark Magenta"!:D:Dmrhart wrote:Nice magenta lettering
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
-
robinson46176
- Platinum Member
- Posts: 4182
- Joined: Mon Mar 09, 2009 9:00 pm
- Location: Central Indiana (Shelbyville)
JPG40504 wrote:That's "Dark Magenta"!:D:D
Looks purple...
.
--
farmer
Francis Robinson
I did not equip with Shopsmiths in spite of the setups but because of them.
