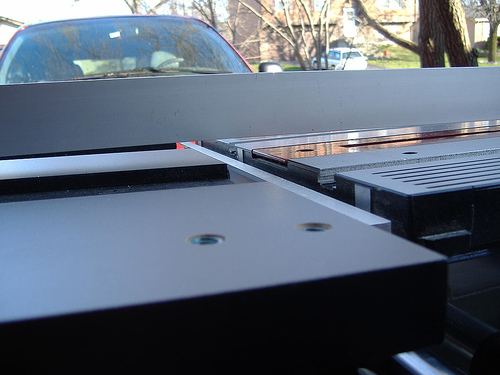

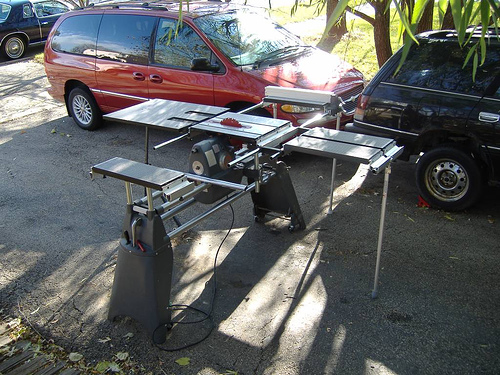

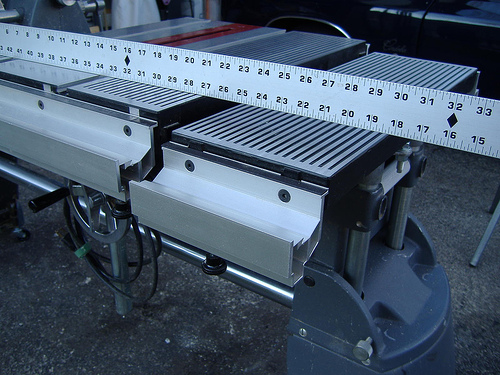

More of my Flickr collection that is moving here. The first couple are just general setups, I like the one with the ruler as it reminds me just how large the front table can get with very little effort.
[ATTACH]2952[/ATTACH]
[ATTACH]2953[/ATTACH]
[ATTACH]2954[/ATTACH]

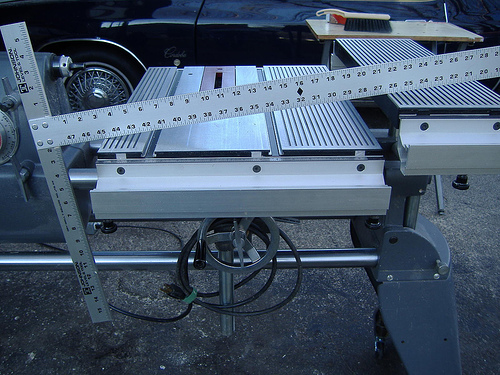

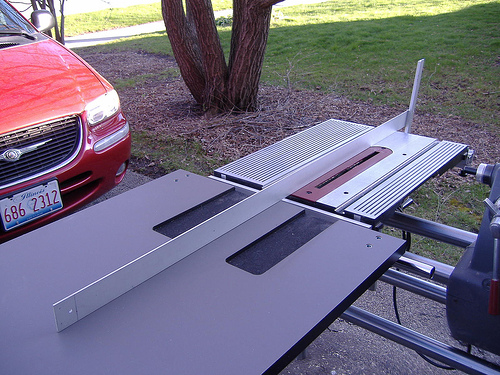

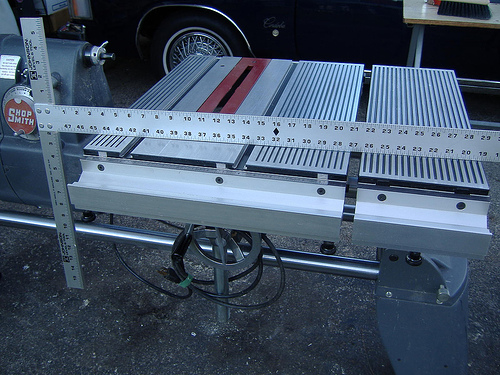

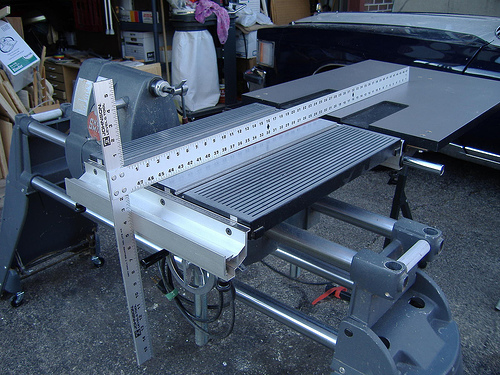

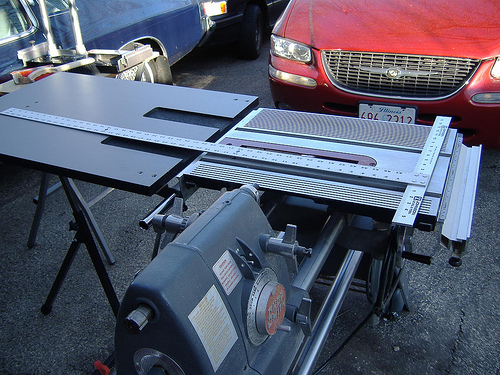

The later photos are of my secret setup tool... but it has been posted here and else where before so the secret is out. They are in the next two post of mine.
