Regarding the bandsaw, where is the recommended spot to mount a bracket for a utility light?
BPR
Bracket placement
Moderator: admin
I am certain that "someone" will answer this question but without knowing what light you are attempting to hang, I don't know how.ryanbp01 wrote:Regarding the bandsaw, where is the recommended spot to mount a bracket for a utility light?
BPR
The best answer that I could provide would be "hang it where it will provide the light needed and be easy to turn on/off".
I would not attach it to the plastic cover!!
MarkFive510
-
tom_k/mo
- Platinum Member
- Posts: 856
- Joined: Mon Jul 14, 2008 3:58 pm
- Location: St. Louis, MO
- Contact:

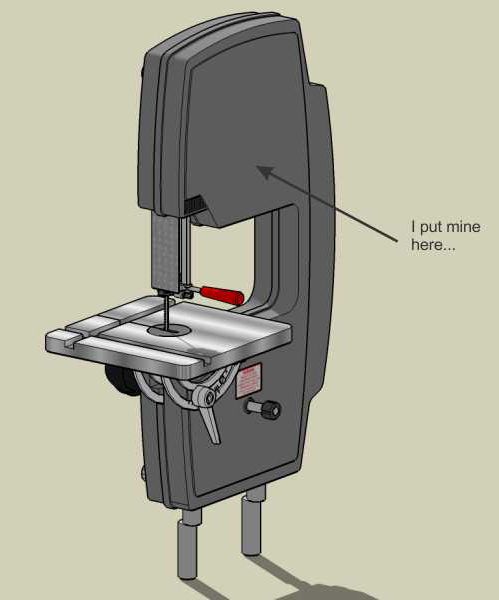

I attached mine to the back side, just below the hub for the upper wheel. It works well. The only thing I did was change out the self-tapping screws that came with the mounting base with a set of machine screws & nuts.
[ATTACH]12803[/ATTACH]
[ATTACH]12803[/ATTACH]
- Attachments
-
- Untitled-1.jpg (29.33 KiB) Viewed 2460 times
ShopSmith MarkV-520 with Belt Sander, Jointer, Band Saw, Strip Sander, Scroll Saw and Biscuit Jointer SPTs and a DC-3300...
Woodworking Hobbyist (Check out all my Woodworking Plans (http://vbwhiz.isa-geek.net/plans)
Aspiring Sandcarver: Breaking glass one grain at a time.
Black Powder Shooter (love the smell of burning sulfur).
Woodworking Hobbyist (Check out all my Woodworking Plans (http://vbwhiz.isa-geek.net/plans)
Aspiring Sandcarver: Breaking glass one grain at a time.
Black Powder Shooter (love the smell of burning sulfur).
A Shopsmith utility light.BigSky wrote:I am certain that "someone" will answer this question but without knowing what light you are attempting to hang, I don't know how.
The best answer that I could provide would be "hang it where it will provide the light needed and be easy to turn on/off".
I would not attach it to the plastic cover!!
BPR
I bought one of these lights a while back. Like Tom, I put a mounting bracket on the bandsaw. However, before doing this I mounted it in any "T" slot available. In fact I still mount it in the saw table, the rip fence, or the bandsaw rip fence when using drill press or strip sander.
In order to mount the light in the "T" tracks, you'll need one of these. http://www.shopsmith.com/ownersite/itemfind.htm?item=521787&Submit=Find+Item I know it is expensive, but it sure is handy!!!!
You can also buy extra mounting brackets and attach them to any SPT you have. BTW, the mounting bracket comes with a drill bit and self tapping screws. Also, instructions on best places to mount the bracket(s).
In order to mount the light in the "T" tracks, you'll need one of these. http://www.shopsmith.com/ownersite/itemfind.htm?item=521787&Submit=Find+Item I know it is expensive, but it sure is handy!!!!
You can also buy extra mounting brackets and attach them to any SPT you have. BTW, the mounting bracket comes with a drill bit and self tapping screws. Also, instructions on best places to mount the bracket(s).
Octogenarian's have an earned right to be a curmudgeon.
Chuck in Lancaster, CA
Chuck in Lancaster, CA
I want it
Tom,
Where did you find that great graphic of the bandsaw????
Where did you find that great graphic of the bandsaw????
'55 Greenie #292284 (Mar-55), '89 SS 510 #020989, Mark VII #408551 (sold 10/14/12), SS Band Saw, (SS 500 #36063 (May-79) now gone to son-in-law as of 11-11), Magna bandsaw, Magna jointer 16185 (May-54), Magna belt sander SS28712 (Dec-82), Magna jigsaw SS4397 (Dec-78), SS biscuit joiner, Zyliss (knockoff) vise, 20+ hand planes, 60s Craftsman tablesaw, CarbaTec mini-lathe, and the usual pile of tools. Hermit of the Hills Woodworks, a hillbilly in the foothills of the Ozarks, scraping by.
-
JPG
- Platinum Member
- Posts: 35600
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
My guess is he 'created' it!;)fiatben wrote:Tom,
Where did you find that great graphic of the bandsaw????
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
-
tom_k/mo
- Platinum Member
- Posts: 856
- Joined: Mon Jul 14, 2008 3:58 pm
- Location: St. Louis, MO
- Contact:
I drew it up in SketchUp. It's available in their 3D Warehouse if you'd like a copy.fiatben wrote:Tom,
Where did you find that great graphic of the bandsaw????
